Feature

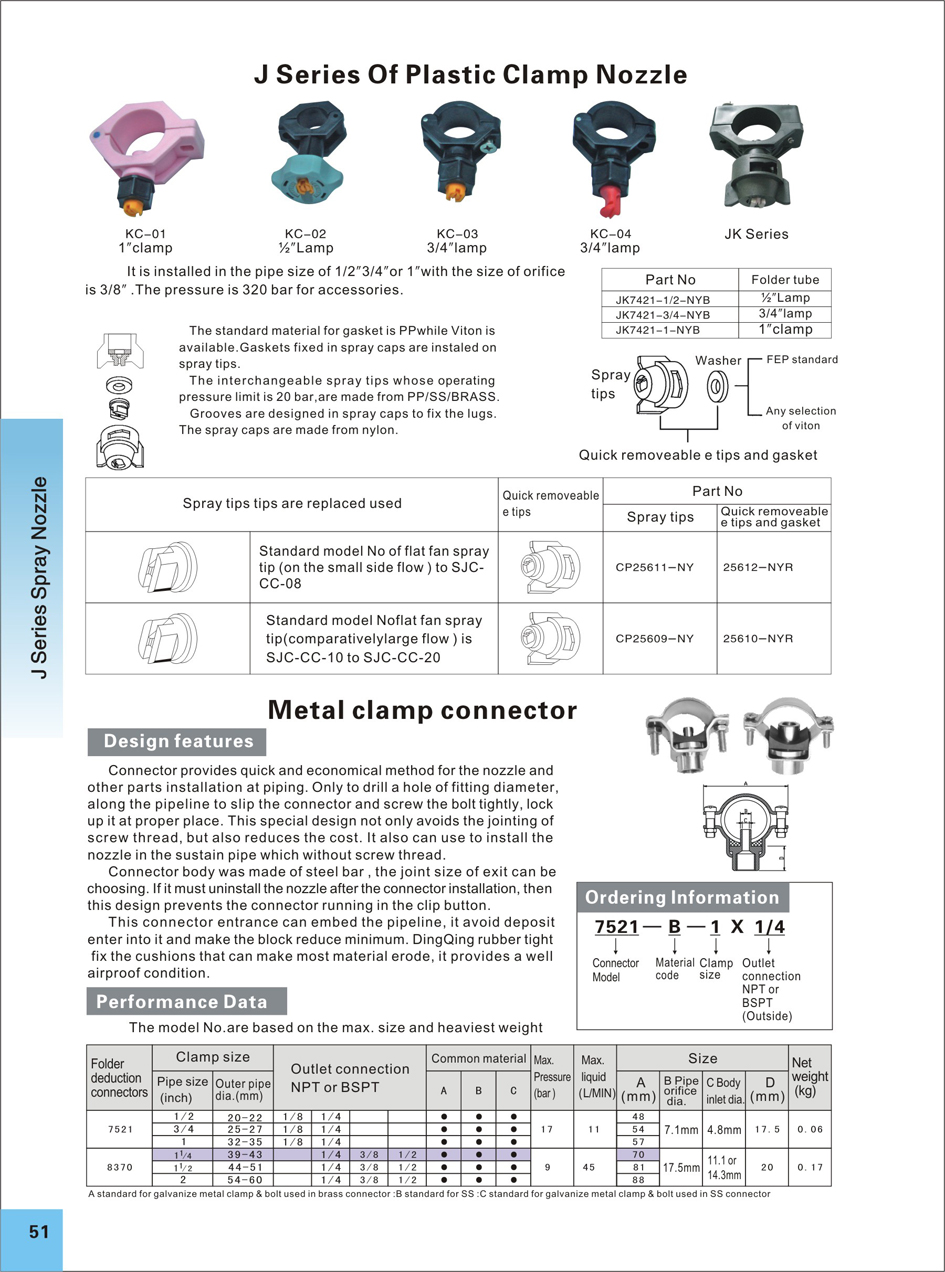

Connector provides quick and economical method for the nozzle and other parts installation at piping.Only to drill a hole of fitting diameter,along the pipe line to slip the connector and screw the bolt tightly,lock up it at proper place.

This special design not only avoids the jointing of screww thread,but also reduces the cost.

It also can use toe install the nozzle in the sustain pipe which without screw thread.

Connector body was made of steel bar,the joint size of exit can be choosing.If it must uninstall the nozzle after the connector installation,then this design prevents the connector running in the clip button.

This connector entrance can embed the pipeline,it avoid deposit enter into it and make the block reduce minimum.

Ritrile ring tightly fixed the cushions that can make most material erode,it provides a well airproof condition.

Application:
1.Plating pretreatment cleaning;
2.Painting and coating before chemical treatment;
3.Spray coating before electrophoresis processing;
4.Steel plate pretreatment spraying;
5.Cleaning vegetables and fruits;
6.Degreasing and phosphating in surface treatment;
7.Other chemical treatment and low pressure applications.
